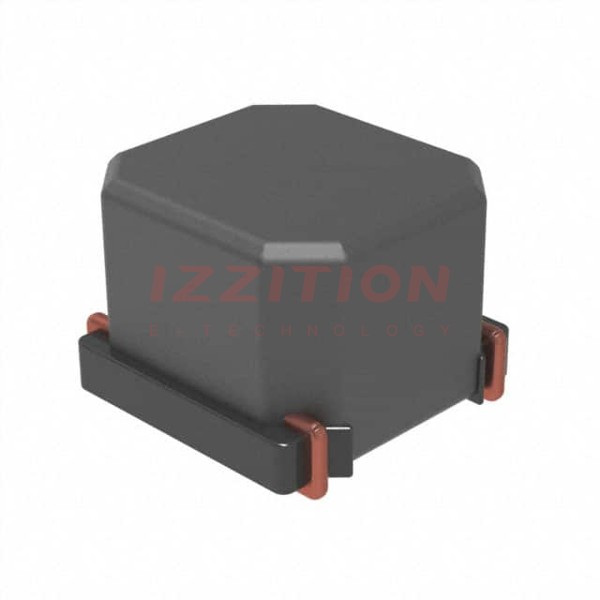

| Part Number | LMLP06D6N6R3CTAS | LMLP06D6N1R3CTAS | LMLP06D6N2R3CTAS |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 6.3 µH | 1.3 µH | 2.3 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.8 A | 4 A | 3.5 A |
| Current - Saturation (Isat) | 3.8A | 8A | 6A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 38mOhm | 16mOhm | 21mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
