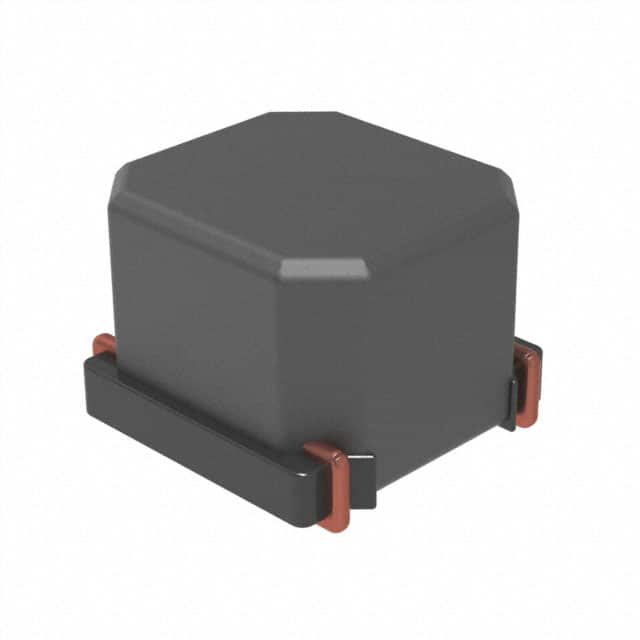

| Part Number | LMLP06D6N3R0CTAS | LMLP06C6N3R0CTAS |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3 µH | 3 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 3.2 A | 3.4 A |
| Current - Saturation (Isat) | 5A | 3.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 24mOhm | 23mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.110" (2.80mm) |
