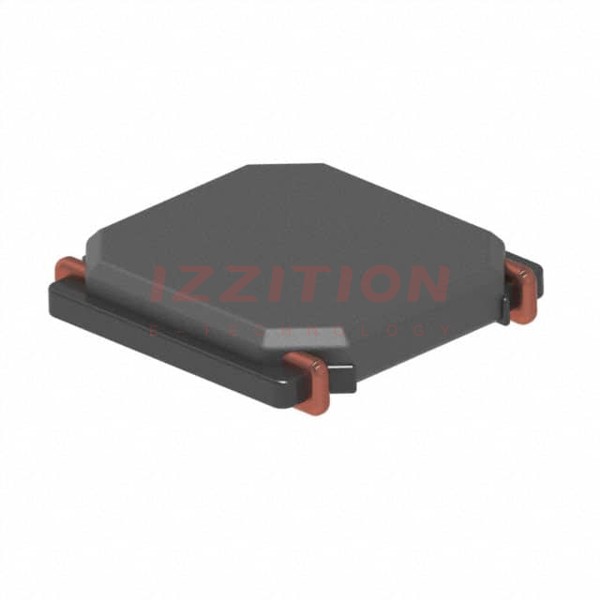

| Part Number | LMLP0606N6R8CTAR | LMLP06A6N6R8CTAR |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 1 A | 1.18 A |
| Current - Saturation (Isat) | 1.2A | 1.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 372mOhm | 165mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.047" (1.20mm) |
