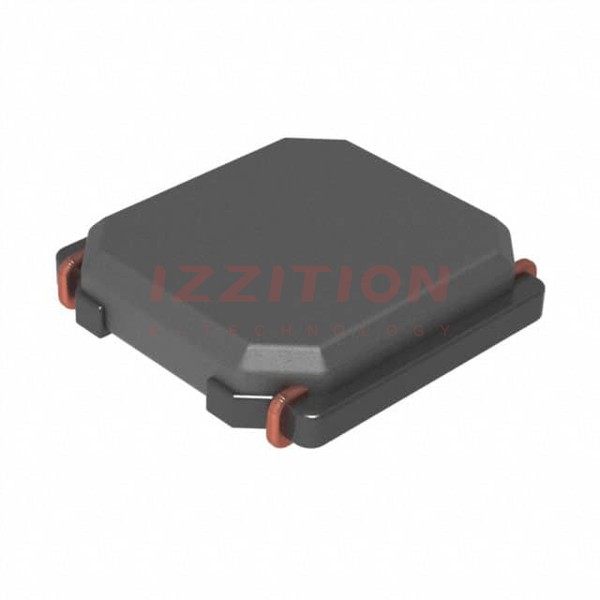

| Part Number | LMLP0505M100CTAR | LMLP05B5M100CTAR |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 940 mA | 1.45 A |
| Current - Saturation (Isat) | 1A | 1.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 480mOhm | 120mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.079" (2.00mm) |
