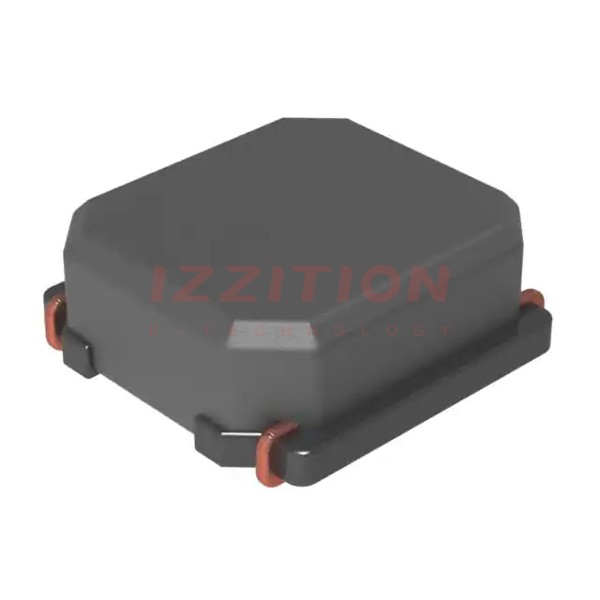

| Part Number | LMLP04B4M330CTAS | LMLP0404M330CTAS | LMLP04A4M330CTAS |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 490 mA | 300 mA | 420 mA |
| Current - Saturation (Isat) | 650mA | 280mA | 400mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 530mOhm | 1.54Ohm | 810mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.039" (1.00mm) | 0.047" (1.20mm) |
