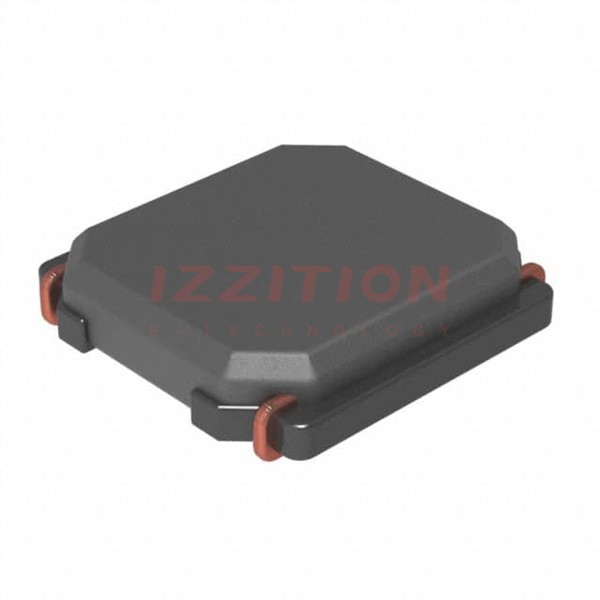

| Part Number | LMLP0404N6R8CTAS | LMLP04A4N6R8CTAS | LMLP04B4N6R8CTAS |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 620 mA | 840 mA | 1.06 A |
| Current - Saturation (Isat) | 740mA | 900mA | 1.45A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 300mOhm | 180mOhm | 110mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.071" (1.80mm) |
