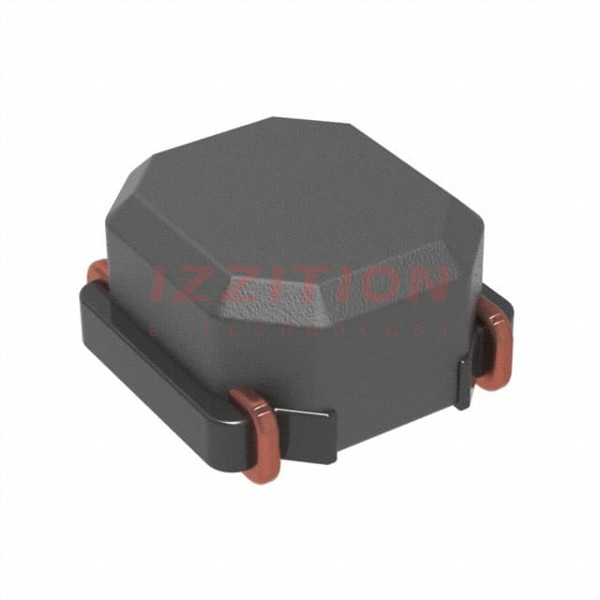

| Part Number | LMLP03B3N1R5CTAR | LMLP0303N1R5CTAR | LMLP03B3N1R0CTAR |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 1.82 A | 1.3 A | 2.1 A |
| Current - Saturation (Isat) | 1.8A | 1.2A | 2.1A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm | 80mOhm | 30mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.039" (1.00mm) | 0.059" (1.50mm) |
