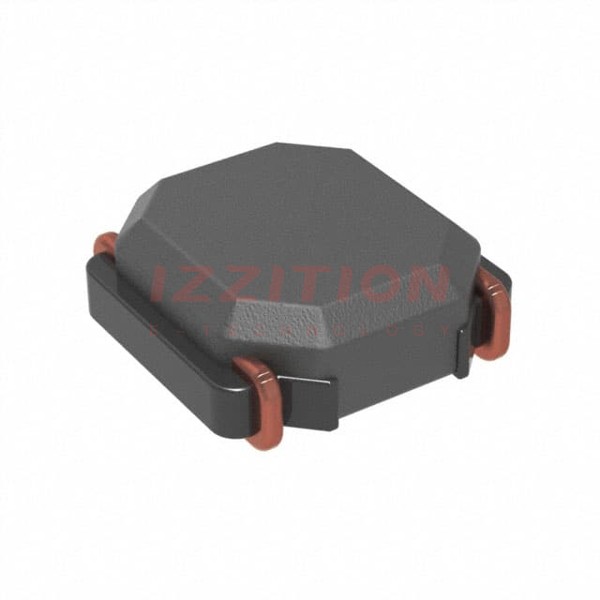

| Part Number | LMLP0303M470CTAR | LMLP03B3M470CTAR |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 47 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 235 mA | 300 mA |
| Current - Saturation (Isat) | 220mA | 320mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 2.05Ohm | 1.34Ohm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) |
