Please send RFQ , we will respond immediately.

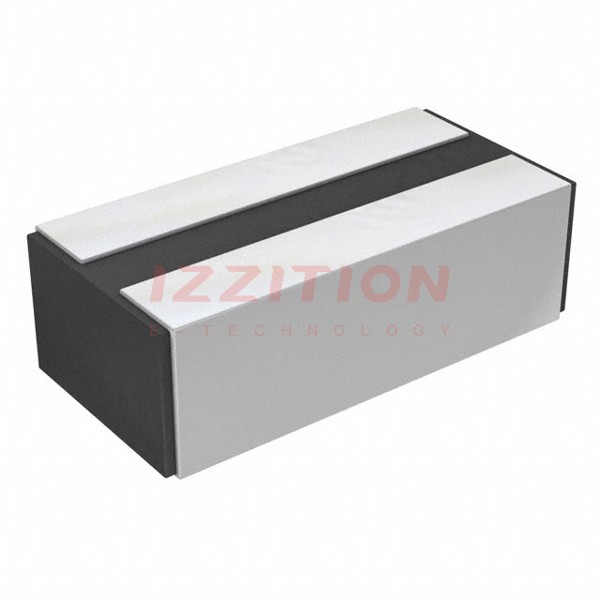

| Part Number | LG226Z104MAT2S1 | LG126Z104MAT2S1 | LG226C104MAT2S1 | LG226D104MAT2S1 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Obsolete | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3V | 6.3V | 6.3V | 6.3V |
| Temperature Coefficient | X7S | X7S | X7R | X5R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 85°C |
| Features | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) | Low ESL (Reverse Geometry) |
| Ratings | - | - | - | - |
| Applications | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0306 (0816 Metric) | 0204 (0510 Metric) | 0306 (0816 Metric) | 0306 (0816 Metric) |
| Size / Dimension | 0.030" L x 0.063" W (0.76mm x 1.60mm) | 0.020" L x 0.039" W (0.50mm x 1.00mm) | 0.030" L x 0.063" W (0.76mm x 1.60mm) | 0.030" L x 0.063" W (0.76mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
