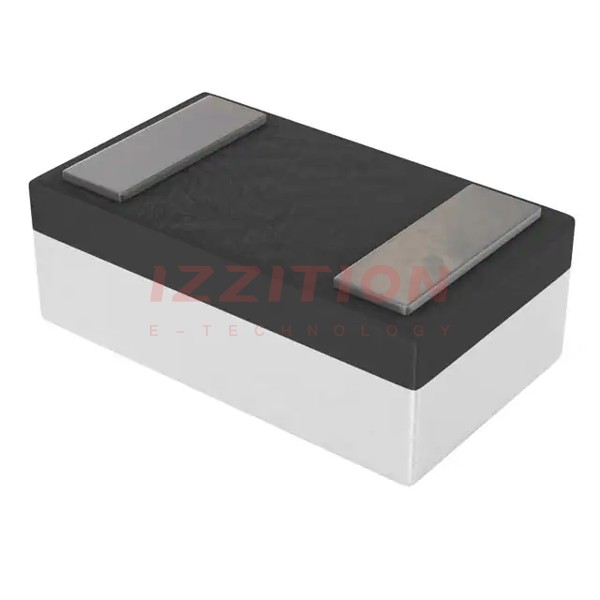

| Part Number | L04025R6BHNTR | L04025R6BHLTR |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | Thin Film | Thin Film |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 5.6 nH | 5.6 nH |
| Tolerance | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 200 mA | 200 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 650mOhm Max | 650mOhm Max |
| Q @ Freq | 13 @ 450MHz | 13 @ 450MHz |
| Frequency - Self Resonant | 7GHz | 7GHz |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 450 MHz | 450 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.039" L x 0.023" W (1.00mm x 0.58mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) |
