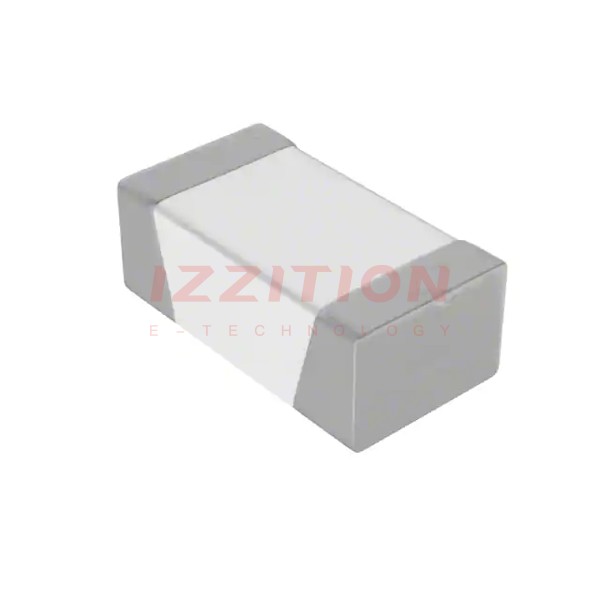

| Part Number | L02012R2BHSTR\500 | L02012R7BHSTR\500 |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Type | Thin Film | Thin Film |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 2.2 nH | 2.7 nH |
| Tolerance | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 200 mA | 180 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 600mOhm Max | 700mOhm Max |
| Q @ Freq | 7 @ 450MHz | 7 @ 450MHz |
| Frequency - Self Resonant | 18GHz | 14GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 450 MHz | 450 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.024" L x 0.013" W (0.60mm x 0.33mm) |
| Height - Seated (Max) | 0.011" (0.28mm) | 0.011" (0.28mm) |
