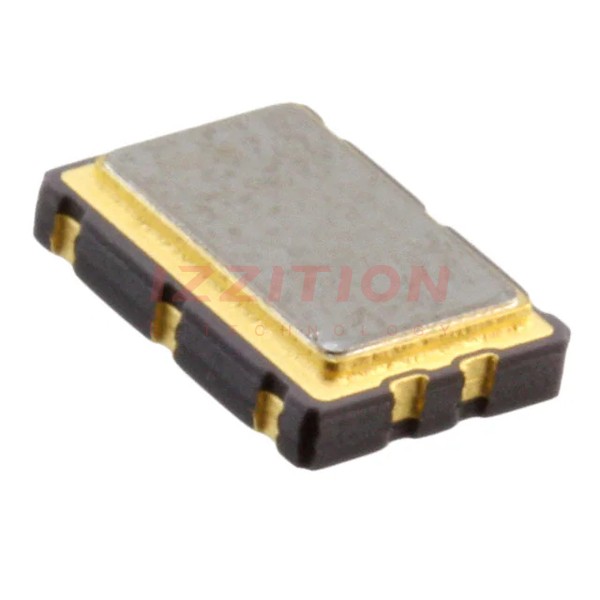

| Part Number | KV7050B20.0000C3GD00 | KV7050B25.0000C3GD00 | KV7050B27.0000C3GD00 | KV7050B40.0000C3GD00 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal | Crystal | Crystal |
| Type | VCXO | VCXO | VCXO | VCXO |
| Frequency | 20 MHz | 25 MHz | 27 MHz | 40 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | ±100ppm | ±100ppm | ±100ppm | ±50ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - |
| Current - Supply (Max) | 15mA | 15mA | 15mA | 15mA |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
