Please send RFQ , we will respond immediately.

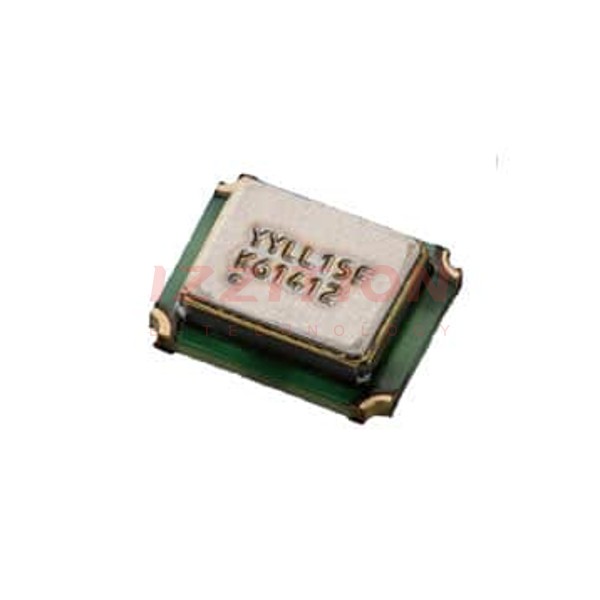

| Part Number | KT2520K26000ACW18TAS | KT2520K26000AAW18TAS |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal |
| Type | TCXO | TCXO |
| Frequency | 26 MHz | 26 MHz |
| Function | - | - |
| Output | Clipped Sine Wave | Clipped Sine Wave |
| Voltage - Supply | 1.8V | 1.8V |
| Frequency Stability | - | ±500ppb |
| Absolute Pull Range (APR) | - | - |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - |
| Current - Supply (Max) | 1.5mA | 2mA |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) |
