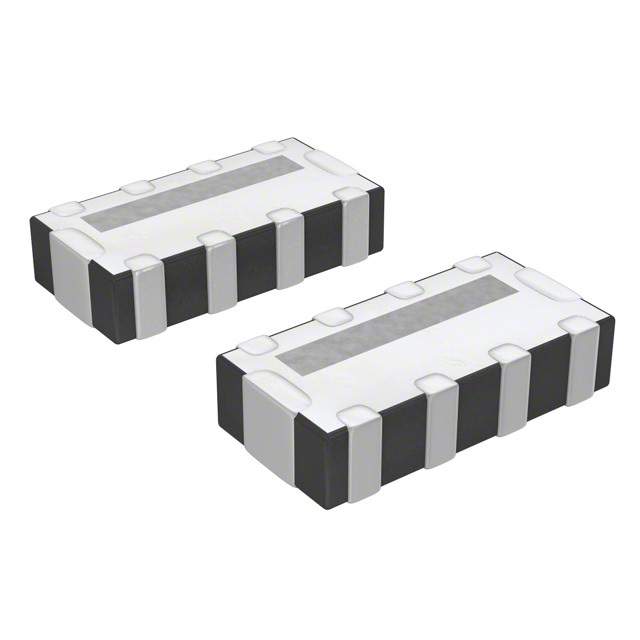

KYOCERA AVX-KNA32200-W3 - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Related Product By Categories

$08051C102MAT2P\LUCE$

$04023J3R6BBSTR\500$

Type:	Low Pass
Filter Order:	-
Technology:	LC
Number of Channels:	-
Center / Cutoff Frequency:	200MHz (Cutoff)
Attenuation Value:	20dB @ 700MHz ~ 1.2GHz
Resistance - Channel (Ohms):	-
Current:	100 mA
Values:	C = 35pF
ESD Protection:	No
Operating Temperature:	-25°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	25V
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Array, 10 PC Pad
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height:	0.033" (0.85mm)
