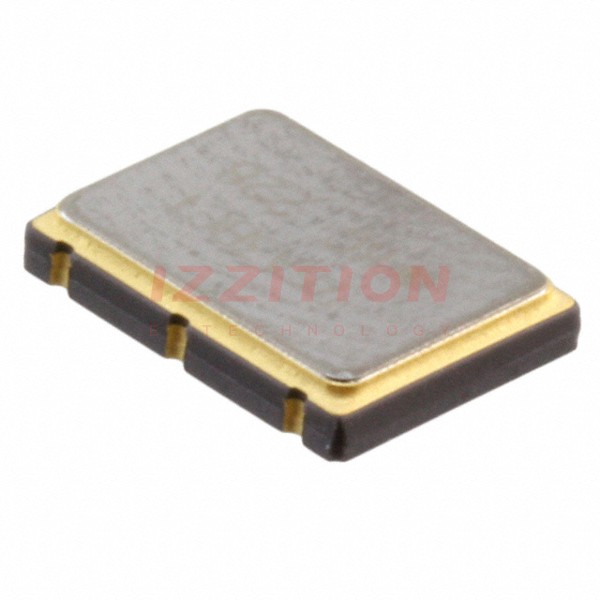

| Part Number | KC7050Y156.250L30EZU | KC7050Y156.250P30EZU | KC7050Y156.250L20EZU |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal | Crystal |
| Type | SO (SAW) | SO (SAW) | SO (SAW) |
| Frequency | 156.25 MHz | 156.25 MHz | 156.25 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVDS | LVPECL | LVDS |
| Voltage - Supply | 3.3V | 3.3V | 2.5V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 70mA | 100mA | 70mA |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
