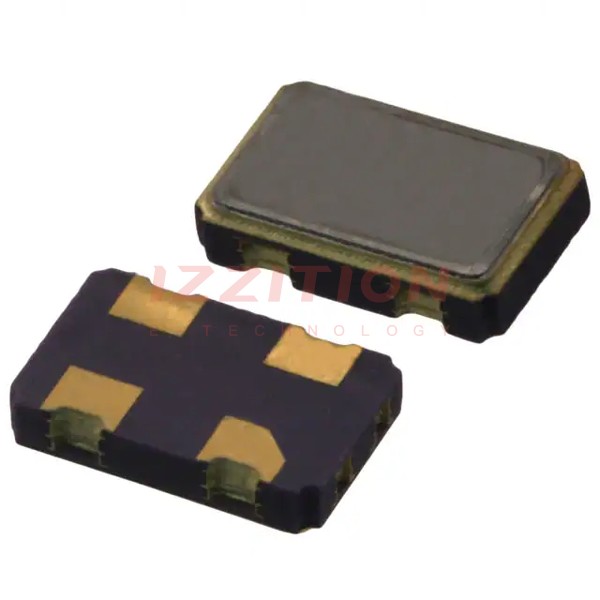

| Part Number | KC5032C40.0000C30E00 | KC5032C50.0000C30E00 | KC5032C60.0000C30E00 | KC5032C20.0000C30E00 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 40 MHz | 50 MHz | 60 MHz | 20 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - |
| Operating Temperature | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - |
| Current - Supply (Max) | 30mA | 30mA | 35mA | 15mA |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
