Please send RFQ , we will respond immediately.

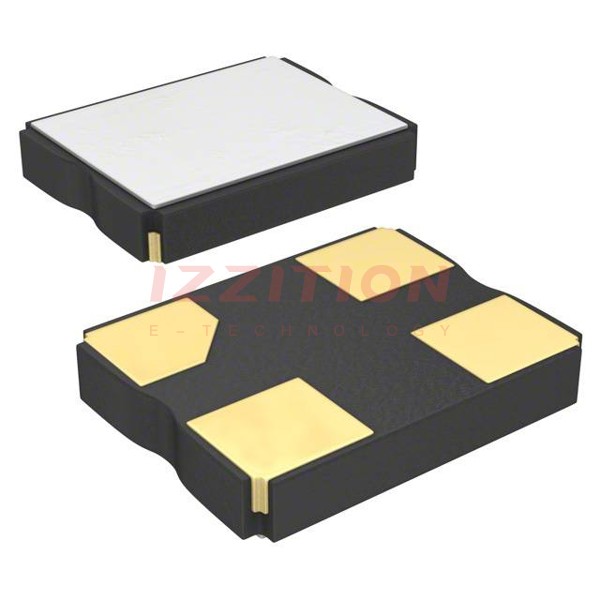

| Part Number | KC2520C26.0000C1YE00 | KC2520C26.0000C2YE00 | KC2520C26.0000C1LE00 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 26 MHz | 26 MHz | 26 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.8V | 2.5V, 3.3V | 1.8V |
| Frequency Stability | ±10ppm | ±10ppm | ±15ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -10°C ~ 70°C | -10°C ~ 70°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 3.5mA | 3.5mA | 3.5mA |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
