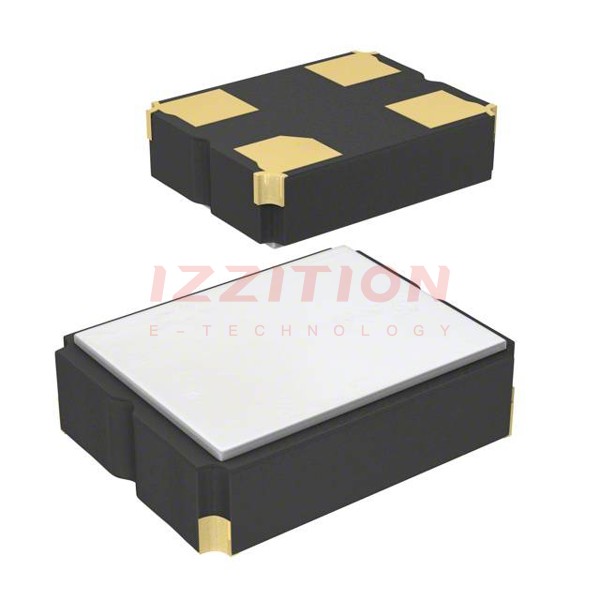

| Part Number | KC2016K20.0000C1GE00 | KC2016K25.0000C1GE00 | KC2016K24.0000C1GE00 | KC2016K50.0000C1GE00 | KC2016K80.0000C1GE00 | KC2016K40.0000C1GE00 | KC2016K27.0000C1GE00 | KC2016K60.0000C1GE00 | KC2016K10.0000C1GE00 | KC2016K20.0000C10E00 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 20 MHz | 25 MHz | 24 MHz | 50 MHz | 80 MHz | 40 MHz | 27 MHz | 60 MHz | 10 MHz | 20 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V | 1.6V ~ 3.63V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -10°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 3.5mA | 5mA | 5mA | 6mA | 8mA | 5mA | 7mA | 11mA | 6mA | 3.5mA |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
