KYOCERA AVX-KBS-20DB-2P-9 - Alarms, Buzzers, and Sirens Product Specifications and Latest Quotes

Driver Circuitry:	Transducer, Externally Driven
Input Type:	Peak-Peak Signal
Voltage - Rated:	10 V
Voltage Range:	-
Frequency:	2.048kHz
Technology:	Piezo
Operating Mode:	Single Tone
Duration:	-
Sound Pressure Level (SPL):	75dB @ 10V, 30cm
Current - Supply:	-
Port Location:	Top
Operating Temperature:	-
Approval Agency:	-
Ratings:	-
Ingress Protection:	-
Mounting Type:	Through Hole
Termination:	PC Pins
Size / Dimension:	1.051" L x 0.906" W (26.70mm x 23.00mm)
Height - Seated (Max):	0.354" (9.00mm)

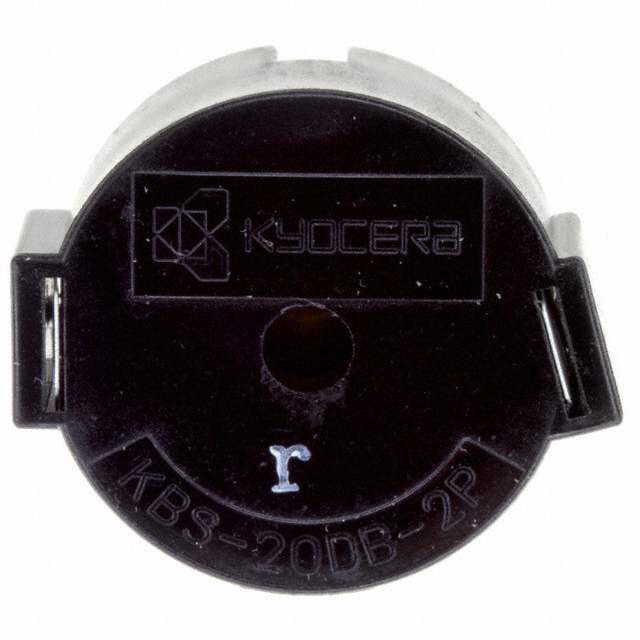

KYOCERA AVX KBS-20DB-2P-9
