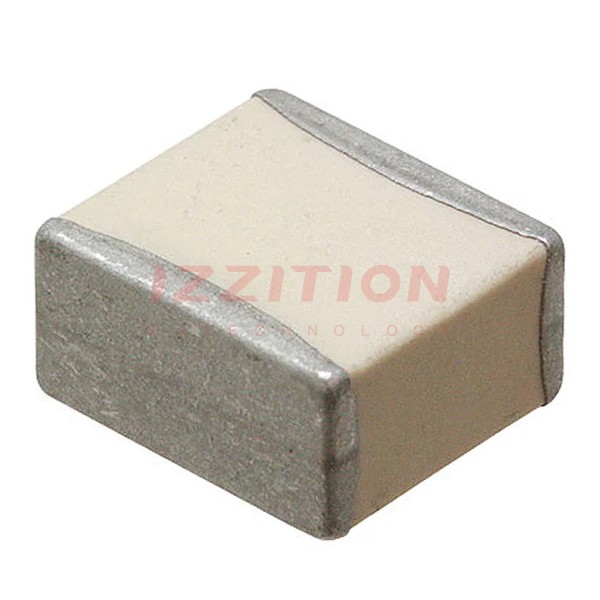

| Part Number | HQCCWM120GAH6A | HQCCWM150GAH6A | HQCCWM180GAH6A | HQCCWM121GAH6A | HQCCWM100GAH6A |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 12 pF | 15 pF | 18 pF | 120 pF | 10 pF |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% |
| Voltage - Rated | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) |
| Temperature Coefficient | P90 | P90 | P90 | P90 | P90 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage | High Q, Low Loss, Ultra Low ESR, High Voltage | High Q, Low Loss, Ultra Low ESR, High Voltage | High Q, Low Loss, Ultra Low ESR, High Voltage | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - | - | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) | 2325 (5864 Metric) | 2325 (5864 Metric) | 2325 (5864 Metric) | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) | 0.230" L x 0.250" W (5.84mm x 6.35mm) | 0.230" L x 0.250" W (5.84mm x 6.35mm) | 0.230" L x 0.250" W (5.84mm x 6.35mm) | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
