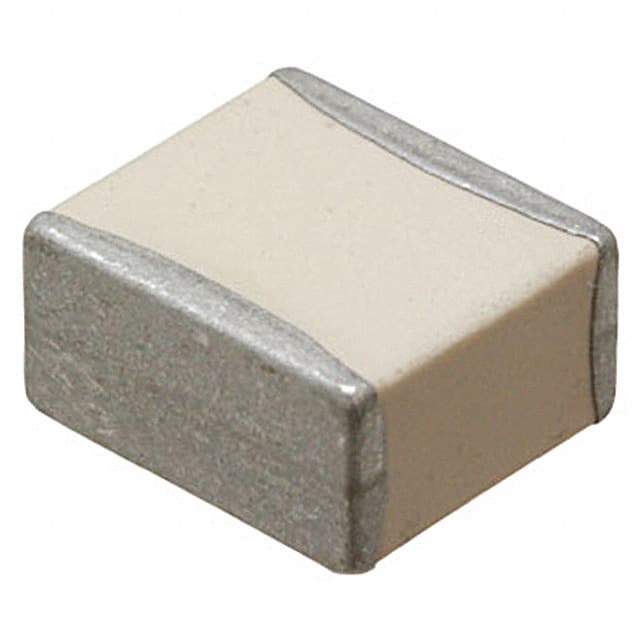

| Part Number | HQCCAM102GAH6A | HQCEAM102GAH6A | HQCCAM122GAH6A |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1000 pF | 1200 pF |
| Tolerance | ±2% | ±2% | ±2% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Temperature Coefficient | P90 | P90 | P90 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage | High Q, Low Loss, Ultra Low ESR, High Voltage | High Q, Low Loss, Ultra Low ESR, High Voltage |
| Ratings | - | - | - |
| Applications | RF, Microwave, High Frequency | RF, Microwave, High Frequency | RF, Microwave, High Frequency |
| Failure Rate | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2325 (5864 Metric) | 3838 (9797 Metric) | 2325 (5864 Metric) |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) | 0.380" L x 0.380" W (9.65mm x 9.65mm) | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.165" (4.19mm) | 0.170" (4.32mm) | 0.165" (4.19mm) |
| Lead Spacing | - | - | - |
| Lead Style | - | - | - |
