| Part Number | FSF05A40 | FSF05A20 |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 200 V |
| Current - Average Rectified (Io) | 5A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 5 A | 980 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 30 µA @ 400 V | 20 µA @ 200 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |

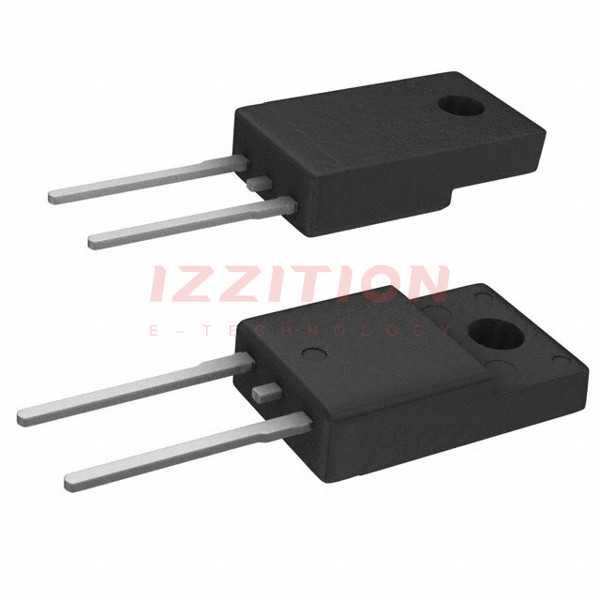

| Package / Case | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220-2 Full-Mold | TO-220-2 Full-Mold |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C |
