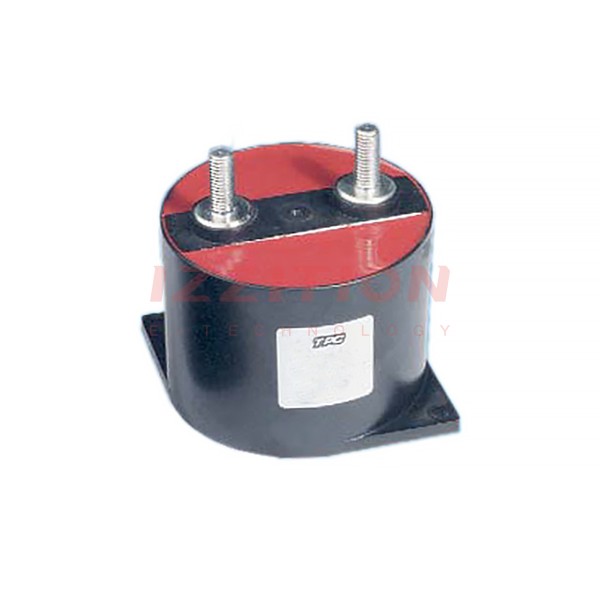

KYOCERA AVX-FFWE6L0107KJ7 - Film Capacitors Product Specifications and Latest Quotes

Related Product By Categories

$AQ147M240FAJME\M5TL$

Capacitance:	100 µF
Tolerance:	±10%
Voltage Rating - AC:	-
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can
Size / Dimension:	3.307" Dia (84.00mm)
Height - Seated (Max):	2.047" (52.00mm)
Termination:	Threaded, Male
Lead Spacing:	1.772" (45.00mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	-
