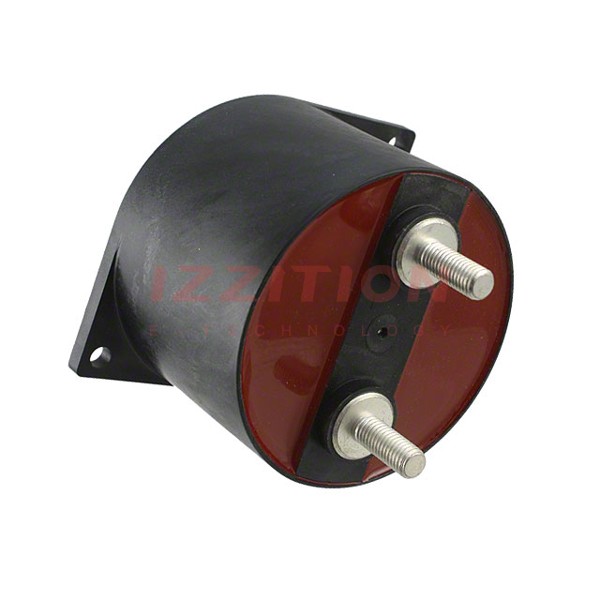

KYOCERA AVX-FFVE6U0107KJ7 - Film Capacitors Product Specifications and Latest Quotes

Related Product By Categories

$LD036C225KAB2A\500$

$UQCSVA3R9CAT2A\500$

Capacitance:	100 µF
Tolerance:	±10%
Voltage Rating - AC:	-
Voltage Rating - DC:	1200V (1.2kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can
Size / Dimension:	3.327" Dia (84.50mm)
Height - Seated (Max):	2.559" (65.00mm)
Termination:	Threaded, Female
Lead Spacing:	1.772" (45.00mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	-
