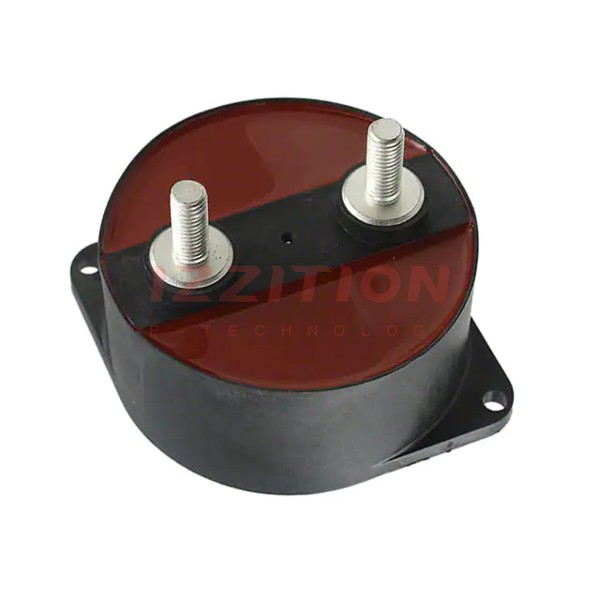

| Part Number | FFVE6K0107K-- | FFWE6K0107K-- | FFVE6B0107K-- |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 600V | 600V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 3.327" Dia (84.50mm) | 3.307" Dia (84.00mm) | 3.327" Dia (84.50mm) |
| Height - Seated (Max) | 1.614" (41.00mm) | 1.614" (41.00mm) | 2.047" (52.00mm) |
| Termination | Threaded, Male | Threaded, Male | Threaded, Male |
| Lead Spacing | 1.772" (45.00mm) | 1.772" (45.00mm) | 1.772" (45.00mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | - |
| Features | - | - | - |
