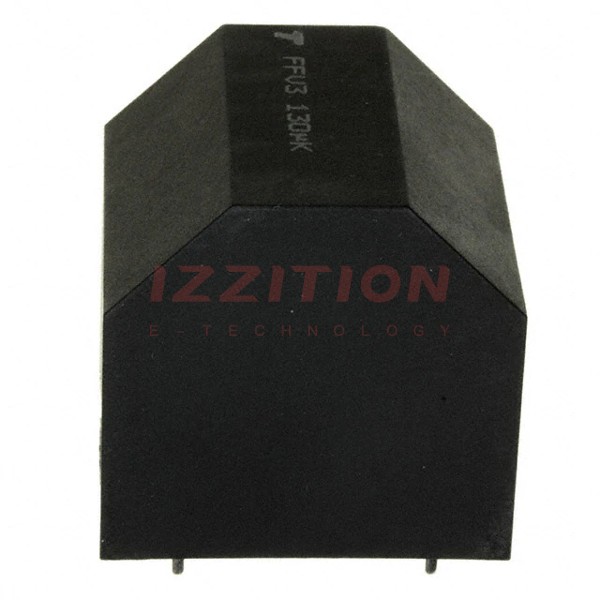

| Part Number | FFV36J0206K-- | FFV36J0256K-- | FFV36A0206K-- |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 20 µF | 25 µF | 20 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 105V | 105V | 120V |
| Voltage Rating - DC | 500V | 500V | 700V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial - 4 Leads | Radial - 4 Leads |
| Size / Dimension | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" L x 1.417" W (40.00mm x 36.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 1.575" (40.00mm) | 1.575" (40.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
