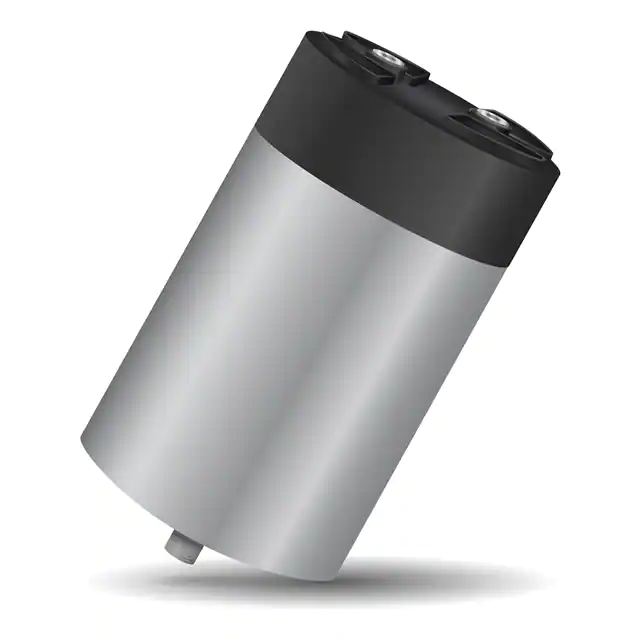

| Part Number | FFLR6B0108KJE | FFLR6Q0108KJE |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active |
| Capacitance | 1000 µF | 1000 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 800V | 600V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 1.8 mOhms | 1 MOhms |
| Operating Temperature | -40°C ~ 95°C | -40°C ~ 95°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can |
| Size / Dimension | 4.567" Dia (116.00mm) | 3.386" Dia (86.00mm) |
| Height - Seated (Max) | 6.181" (157.00mm) | 6.417" (163.00mm) |
| Termination | Threaded, Female | Threaded, Female |
| Lead Spacing | 1.969" (50.00mm) | 1.260" (32.00mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - |
| Features | - | - |
