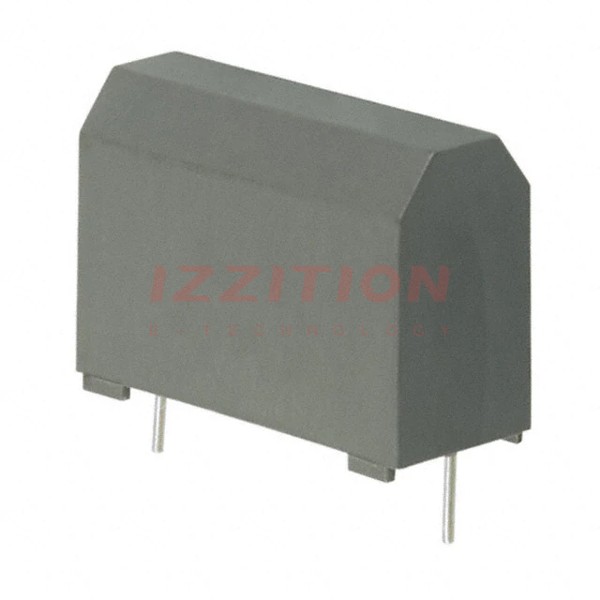

KYOCERA AVX-FFB16J0395K-- - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	3.9 µF
Tolerance:	±10%
Voltage Rating - AC:	105V
Voltage Rating - DC:	525V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.224" L x 0.512" W (31.10mm x 13.00mm)
Height - Seated (Max):	0.882" (22.40mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	-

KYOCERA AVX FFB16J0395K--
