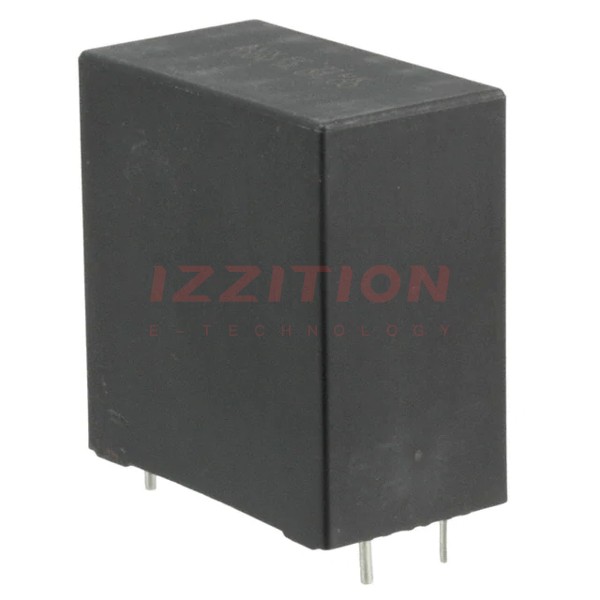

KYOCERA AVX-FE37L6A0226KA - Film Capacitors Product Specifications and Latest Quotes

Related Product By Categories

$1812WC471KAT1A\SB$

Capacitance:	22 µF
Tolerance:	±10%
Voltage Rating - AC:	-
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	5.5 mOhms
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.673" L x 0.945" W (42.50mm x 24.00mm)
Height - Seated (Max):	1.732" (44.00mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	Low ESR
