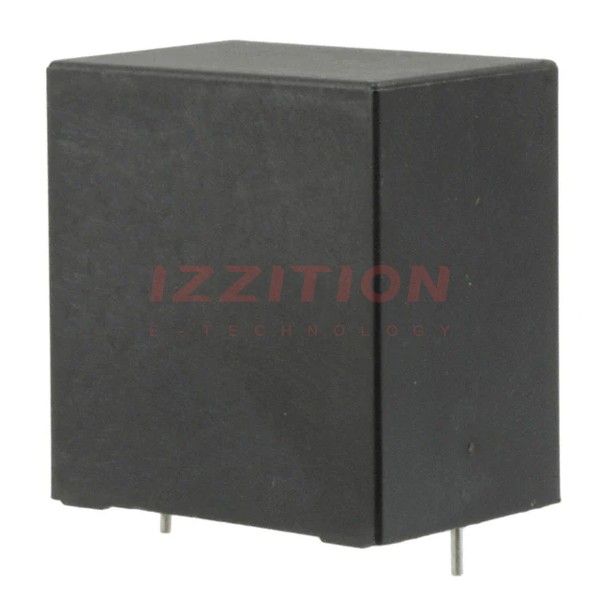

KYOCERA AVX-FB37M6P0106KC - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	10 µF
Tolerance:	±10%
Voltage Rating - AC:	-
Voltage Rating - DC:	1200V (1.2kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	8.5 mOhms
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.673" L x 1.181" W (42.50mm x 30.00mm)
Height - Seated (Max):	1.772" (45.00mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	Low ESR

KYOCERA AVX FB37M6P0106KC
