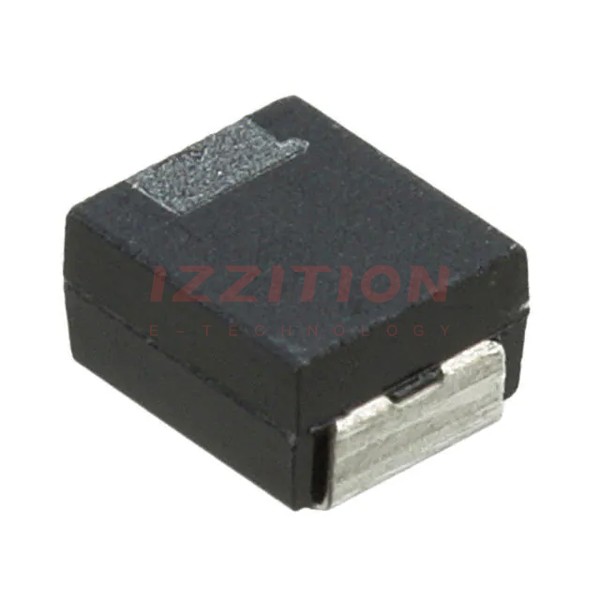

| Part Number | F971V225KBA | F971V225MBA | F971E225KBA |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±20% | ±10% |
| Voltage - Rated | 35 V | 35 V | 25 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 3.8Ohm | 3.8Ohm | 3.8Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 1411 (3528 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.091" (2.30mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | B | B | B |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability |
| Failure Rate | - | - | - |
