Please send RFQ , we will respond immediately.

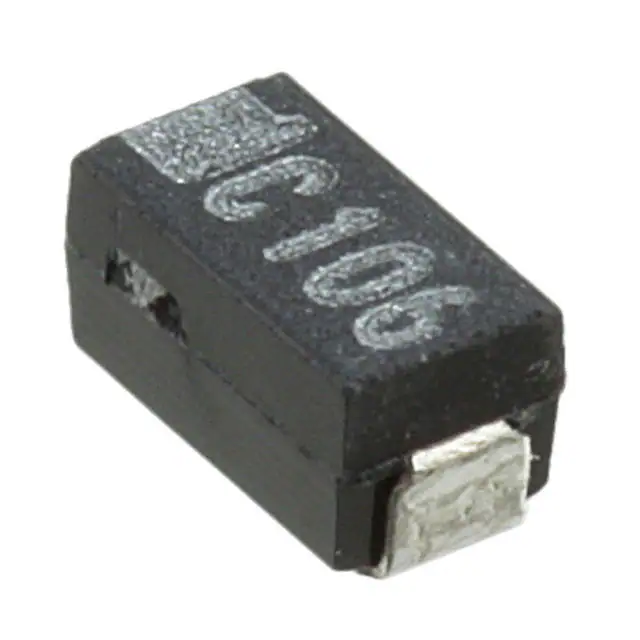

| Part Number | F971C475MAAHT3 | F971D475MAAHT3 | F971C475MBAHT3 | F971A475MAAHT3 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 20 V | 16 V | 10 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 4Ohm | 4Ohm | 2.8Ohm | 4Ohm |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1411 (3528 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.083" (2.10mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | A | A | B | A |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability |
| Failure Rate | - | - | - | - |
