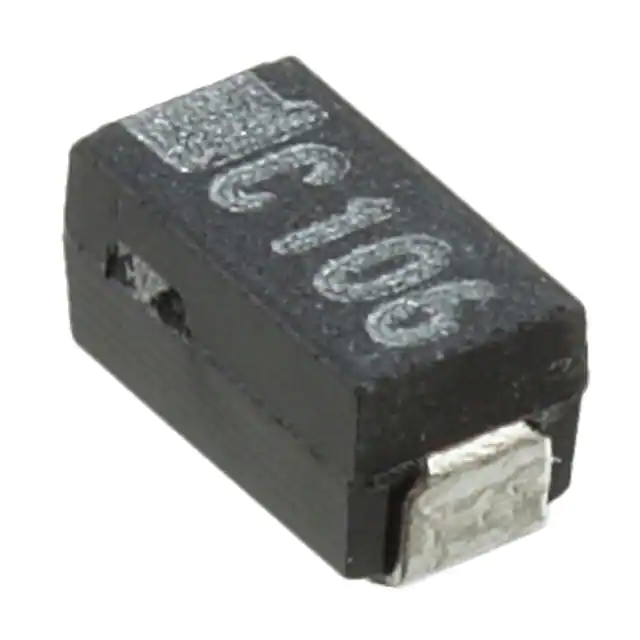

| Part Number | F971A336MCCHT3 | F971C336MCCHT3 | F971A336MNCHT3 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Obsolete |
| Capacitance | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 10 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1.1Ohm | 1.1Ohm | 700mOhm |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.118" (3.00mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | C | C | N |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability |
| Failure Rate | - | - | - |
