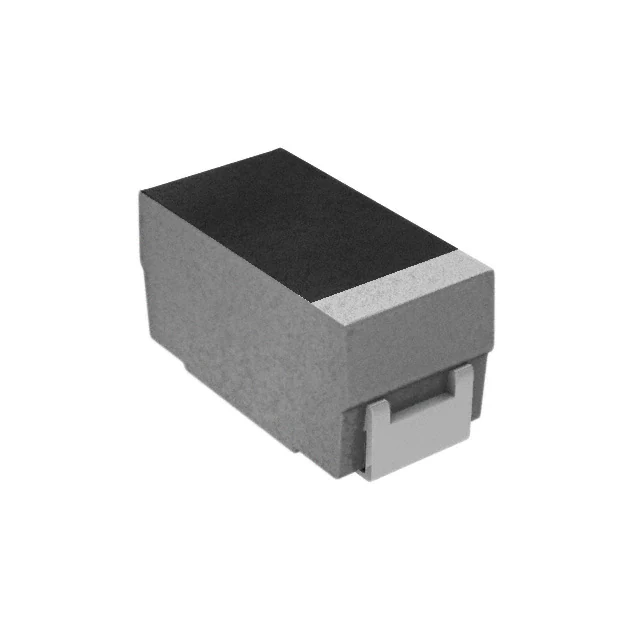

| Part Number | F971A226MAA | F971A226MBA | F971A225MAA | F971A226KAA |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 2.2 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 10 V | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 3Ohm | 1.9Ohm | 5Ohm | 3Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1411 (3528 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.091" (2.30mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | A | B | A | A |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability |
| Failure Rate | - | - | - | - |
