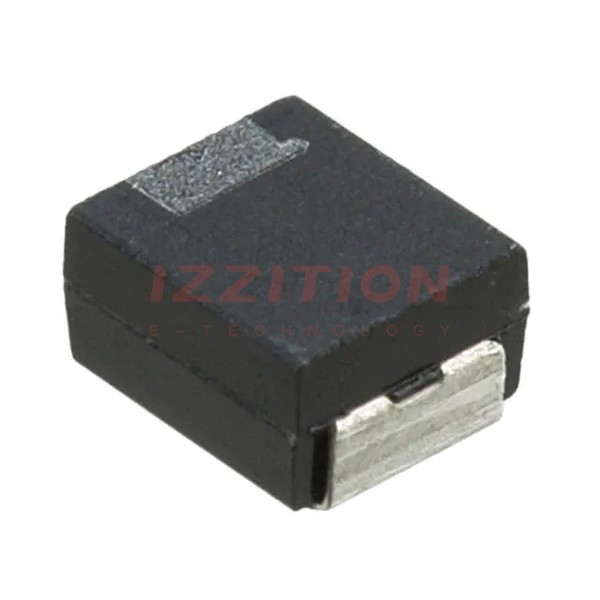

| Part Number | F970J685KBA | F970J685MBA | F970J685KAA |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 6.8 µF | 6.8 µF | 6.8 µF |
| Tolerance | ±10% | ±20% | ±10% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.5Ohm | 2.5Ohm | 3.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 1411 (3528 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.091" (2.30mm) | 0.091" (2.30mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | B | B | A |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive, High Reliability | Automotive, High Reliability | Automotive, High Reliability |
| Failure Rate | - | - | - |
