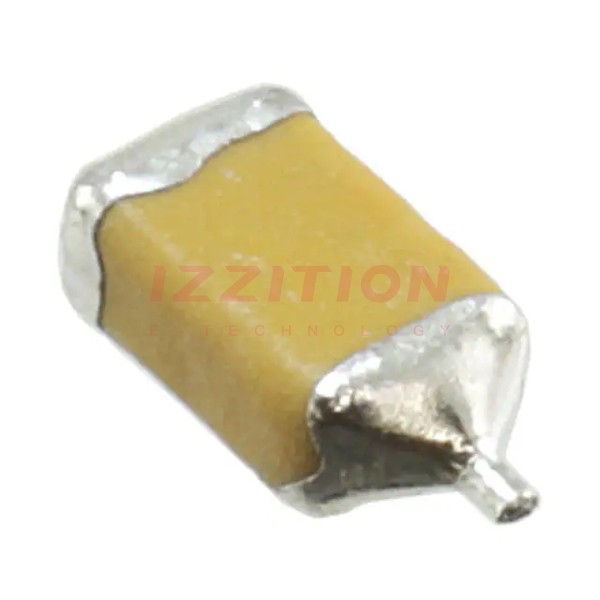

| Part Number | F950J107MAAAQ2 | F950J107MTAAQ2 | F950J107MPAAQ2 | F950J107MSAAQ2 | F950J107MQAAQ2 | F950J107MBAAQ2 | F950G107MAAAQ2 | F950J107KAAAQ2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 4 V | 6.3 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 500mOhm | 600mOhm | 1.2Ohm | 900mOhm | 1.1Ohm | 400mOhm | 500mOhm | 500mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1411 (3528 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1411 (3528 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.067" W (3.20mm x 1.70mm) | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.087" L x 0.049" W (2.20mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.126" L x 0.067" W (3.20mm x 1.70mm) | 0.126" L x 0.067" W (3.20mm x 1.70mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.047" (1.20mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.079" (2.00mm) | 0.063" (1.60mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | A | T | P | S | Q | B | A | A |
| Ratings | - | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
