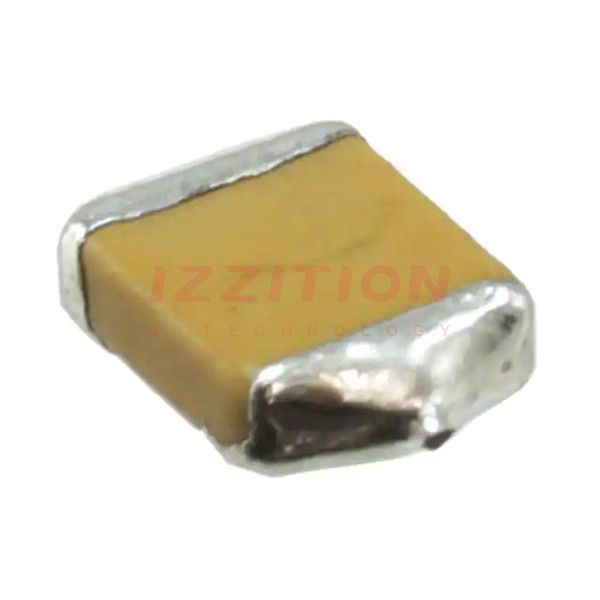

| Part Number | F950G337KTAAQ2 | F950G337MTAAQ2 | F950G337KAAAQ2 | F950G337KBAAQ2 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 4 V | 4 V | 4 V | 4 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 800mOhm | 800mOhm | 800mOhm | 600mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 1411 (3528 Metric) | 1206 (3216 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.138" L x 0.106" W (3.50mm x 2.70mm) | 0.126" L x 0.067" W (3.20mm x 1.70mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.079" (2.00mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | T | T | A | B |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
