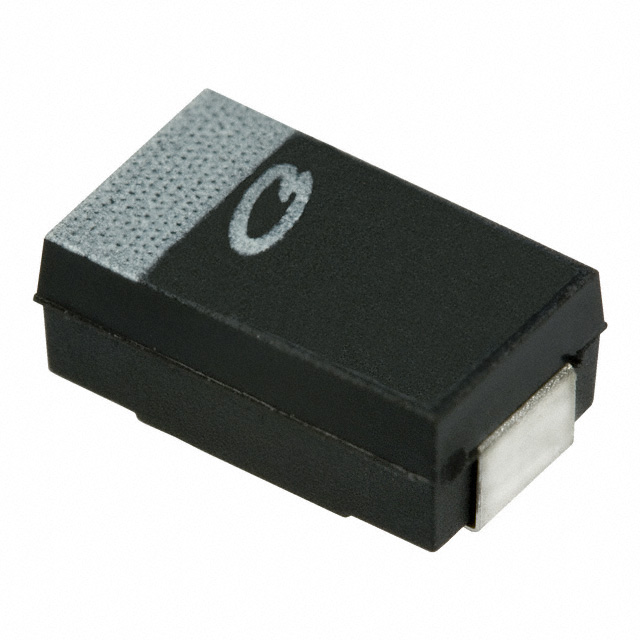

| Part Number | F931E476KNC | F931E476MNC | F931C476KNC | F931D476KNC |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 25 V | 25 V | 16 V | 20 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 700mOhm @ 100kHz | 700mOhm @ 100kHz | 700mOhm @ 100kHz | 700mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | N | N | N | N |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
