Please send RFQ , we will respond immediately.

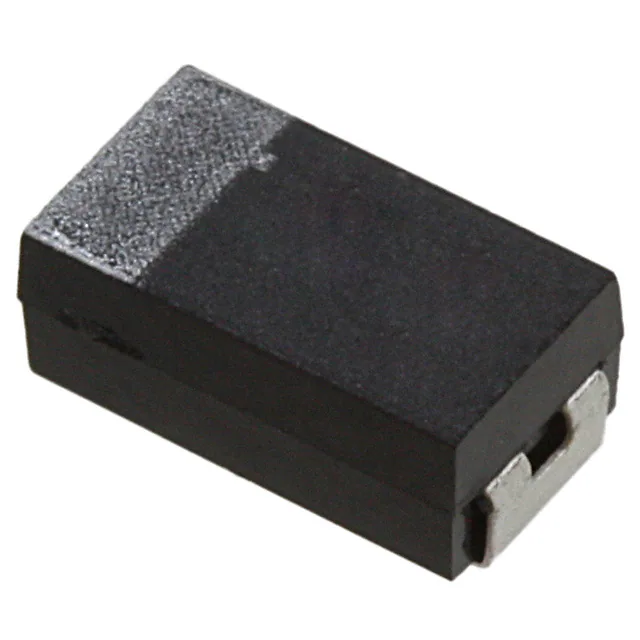

| Part Number | F931D336KCC | F931D336MCC | F931D336KNC | F931C336KCC |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 20 V | 20 V | 20 V | 16 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1.1Ohm @ 100kHz | 1.1Ohm @ 100kHz | 700mOhm @ 100kHz | 1.1Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2312 (6032 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.118" (3.00mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | C | C | N | C |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
