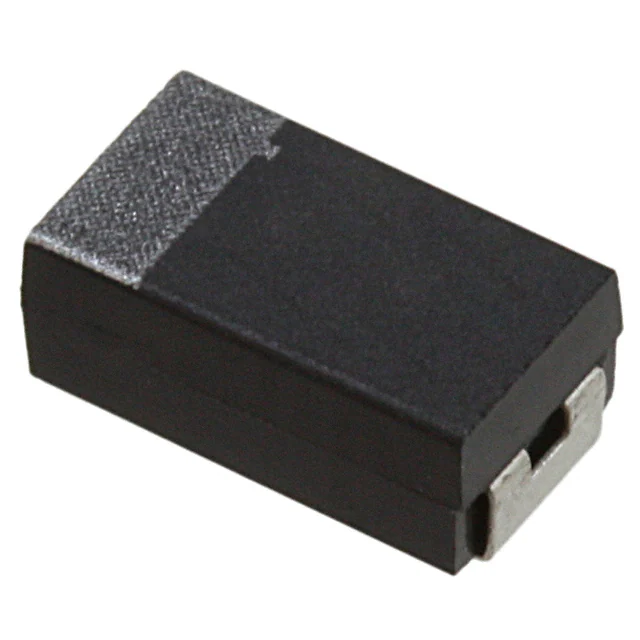

| Part Number | F931C106MAAAJ6 | F931C156MAAAJ6 | F931C106KAAAJ6 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 10 µF | 15 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±10% |
| Voltage - Rated | 16 V | 16 V | 16 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 3Ohm @ 100kHz | 3Ohm @ 100kHz | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | A | A | A |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | Automotive | Automotive | Automotive |
| Failure Rate | - | - | - |
