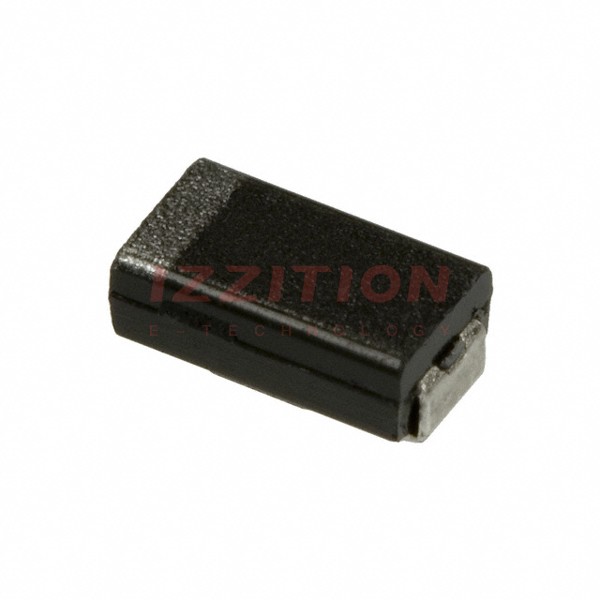

| Part Number | F921A106MAA | F921A106MPA | F921A156MAA | F921A106MBA |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 15 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 4Ohm | 6Ohm | 4Ohm | 2Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.134" L x 0.110" W (3.40mm x 2.80mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.039" (1.00mm) | 0.051" (1.30mm) | 0.094" (2.40mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | A | P | A | B |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
