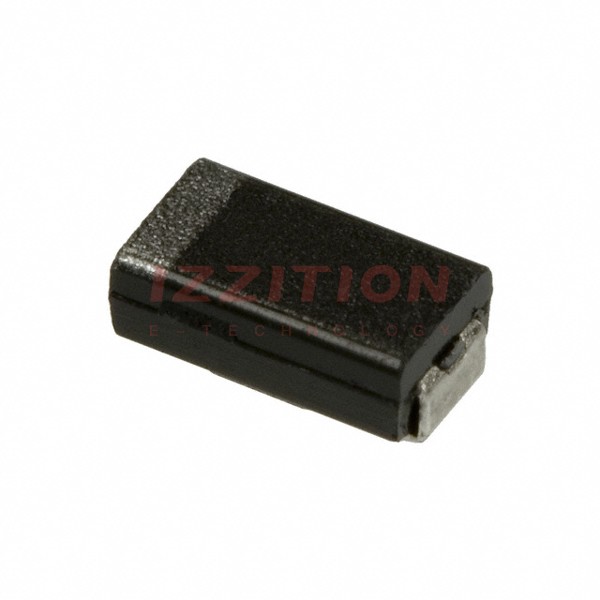

| Part Number | F920J336MAA | F920J336MBA | F920G336MAA |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Active | Active |
| Capacitance | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 4 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.8Ohm | 1.7Ohm | 2.8Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1411 (3528 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.134" L x 0.110" W (3.40mm x 2.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.094" (2.40mm) | 0.051" (1.30mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | A | B | A |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
