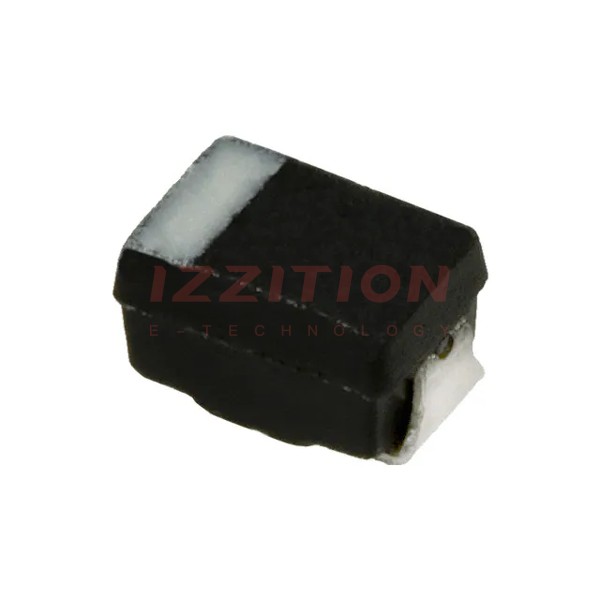

| Part Number | F920G226MPA | F920J226MPA | F920E226MPA | F920G225MPA | F920G226MAA |
|---|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 2.2 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 6.3 V | 2.5 V | 4 V | 4 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 5Ohm | 5Ohm | 4Ohm | 12Ohm | 2.8Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.051" (1.30mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | P | P | P | P | A |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
