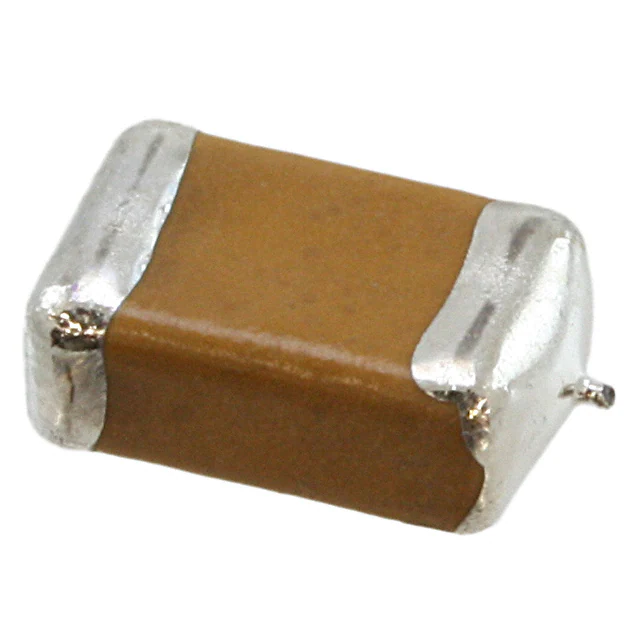

| Part Number | F751A227KDC | F751A227MDC | F751A227KCC |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF |
| Tolerance | ±10% | ±20% | ±10% |
| Voltage - Rated | 10 V | 10 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 200mOhm | 200mOhm | 200mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2812 (7132 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.280" L x 0.126" W (7.10mm x 3.20mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.110" (2.80mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D | D | C |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
