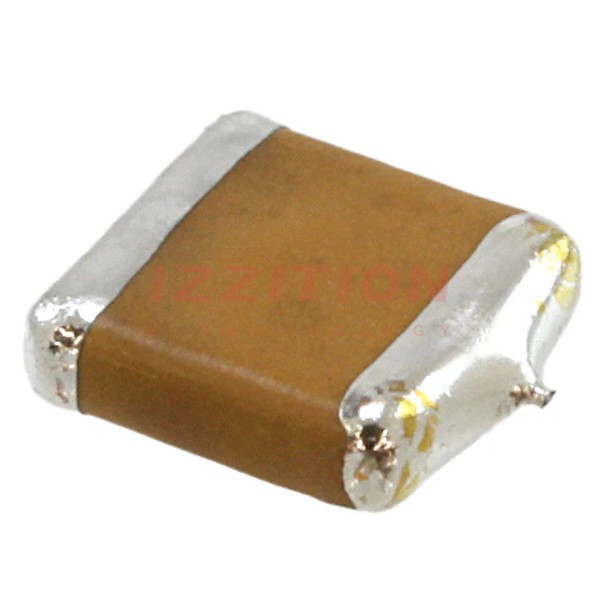

| Part Number | F720J157KRC | F720J157MRC | F720G157KRC | F720J107KRC |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active |
| Capacitance | 150 µF | 150 µF | 150 µF | 100 µF |
| Tolerance | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 6.3 V | 6.3 V | 4 V | 6.3 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 700mOhm | 700mOhm | 700mOhm | 700mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2824 (7260 Metric) | 2824 (7260 Metric) | 2824 (7260 Metric) | 2824 (7260 Metric) |
| Size / Dimension | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.150" (3.80mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | R | R | R | R |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
