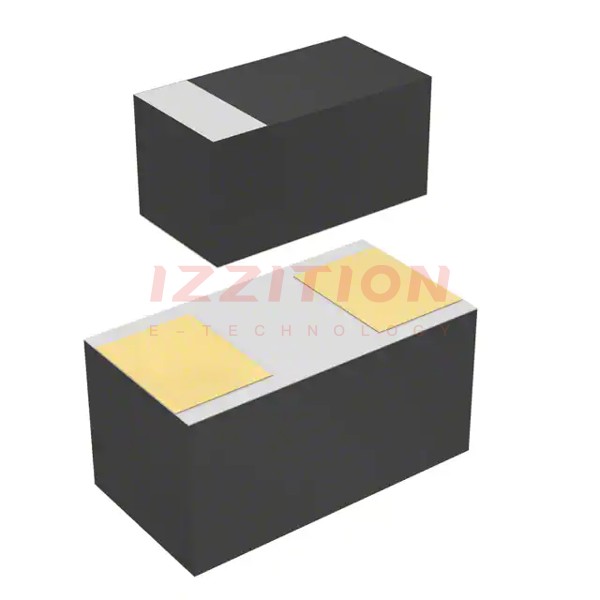

| Part Number | F380J226MMAAH1 | F380J226MMAAH3 | F380J226MSAAH1 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz | 300mOhm @ 100kHz | 150mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | M | M | S |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
