Please send RFQ , we will respond immediately.

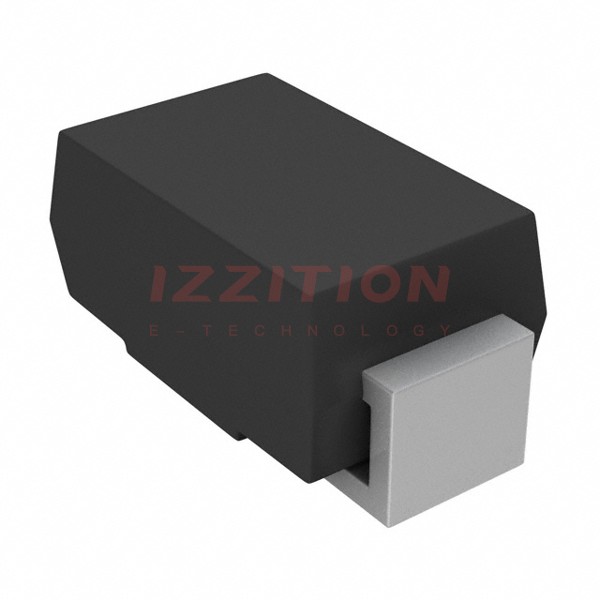

| Part Number | EC11FS4 | EC11FS2 |
|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 200 V |
| Current - Average Rectified (Io) | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 1 A | 980 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns | 30 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 400 V | 10 µA @ 200 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C |
