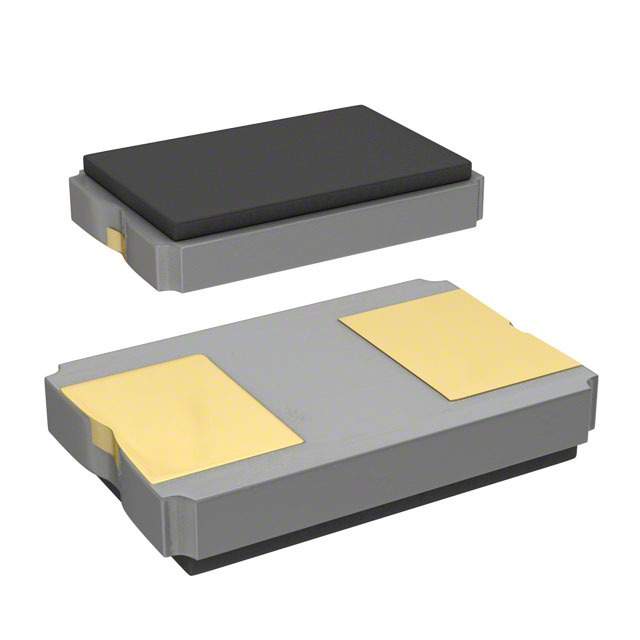

| Part Number | CX5032GB16000H0HPQZ1 | CX5032GB10000H0HPQZ1 | CX5032GB12000H0HPQZ1 |
|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 16 MHz | 10 MHz | 12 MHz |
| Frequency Stability | ±30ppm | ±30ppm | ±30ppm |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | 12pF | 12pF | 12pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 150 Ohms | 150 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
