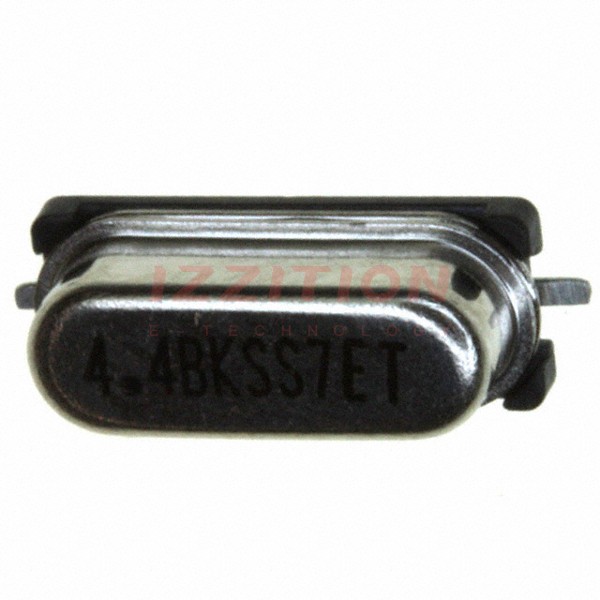

| Part Number | CX49GFNB16000H0PESZZ | CX49GFNB06000H0PESZZ | CX49GFNB10000H0PESZZ | CX49GFNB12000H0PESZZ |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 16 MHz | 6 MHz | 10 MHz | 12 MHz |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Frequency Tolerance | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Load Capacitance | 12pF | 12pF | 12pF | 12pF |
| ESR (Equivalent Series Resistance) | 50 Ohms | 90 Ohms | 90 Ohms | 70 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | HC-49/US | HC-49/US | HC-49/US | HC-49/US |
| Size / Dimension | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.425" L x 0.177" W (10.80mm x 4.50mm) | 0.425" L x 0.177" W (10.80mm x 4.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) | 0.177" (4.50mm) |
