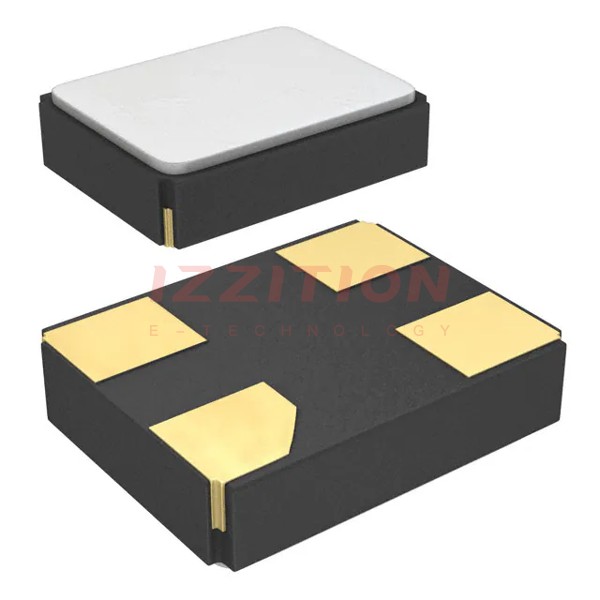

| Part Number | CX3225SB54000D0WPSC1 | CX3225SB54000D0WPTC1 | CX3225SB54000D0WPSC3 | CX3225SB54000D0WPSC2 |
|---|---|---|---|---|
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Obsolete |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 54 MHz | 54 MHz | 54 MHz | 54 MHz |
| Frequency Stability | ±30ppm | ±100ppm | ±50ppm | ±30ppm |
| Frequency Tolerance | ±15ppm | ±50ppm | ±50ppm | ±15ppm |
| Load Capacitance | 8pF | 8pF | 8pF | 8pF |
| ESR (Equivalent Series Resistance) | 23 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
